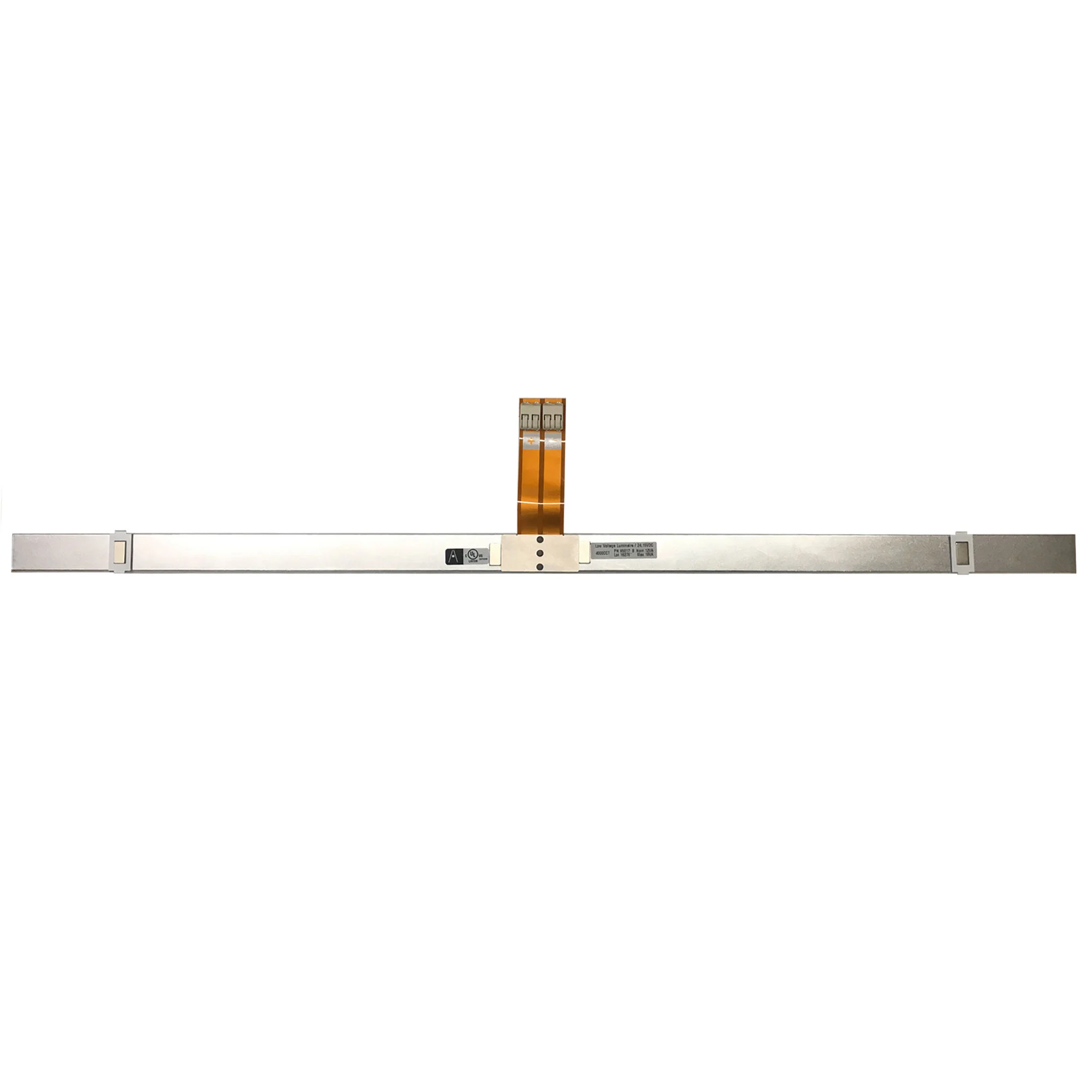

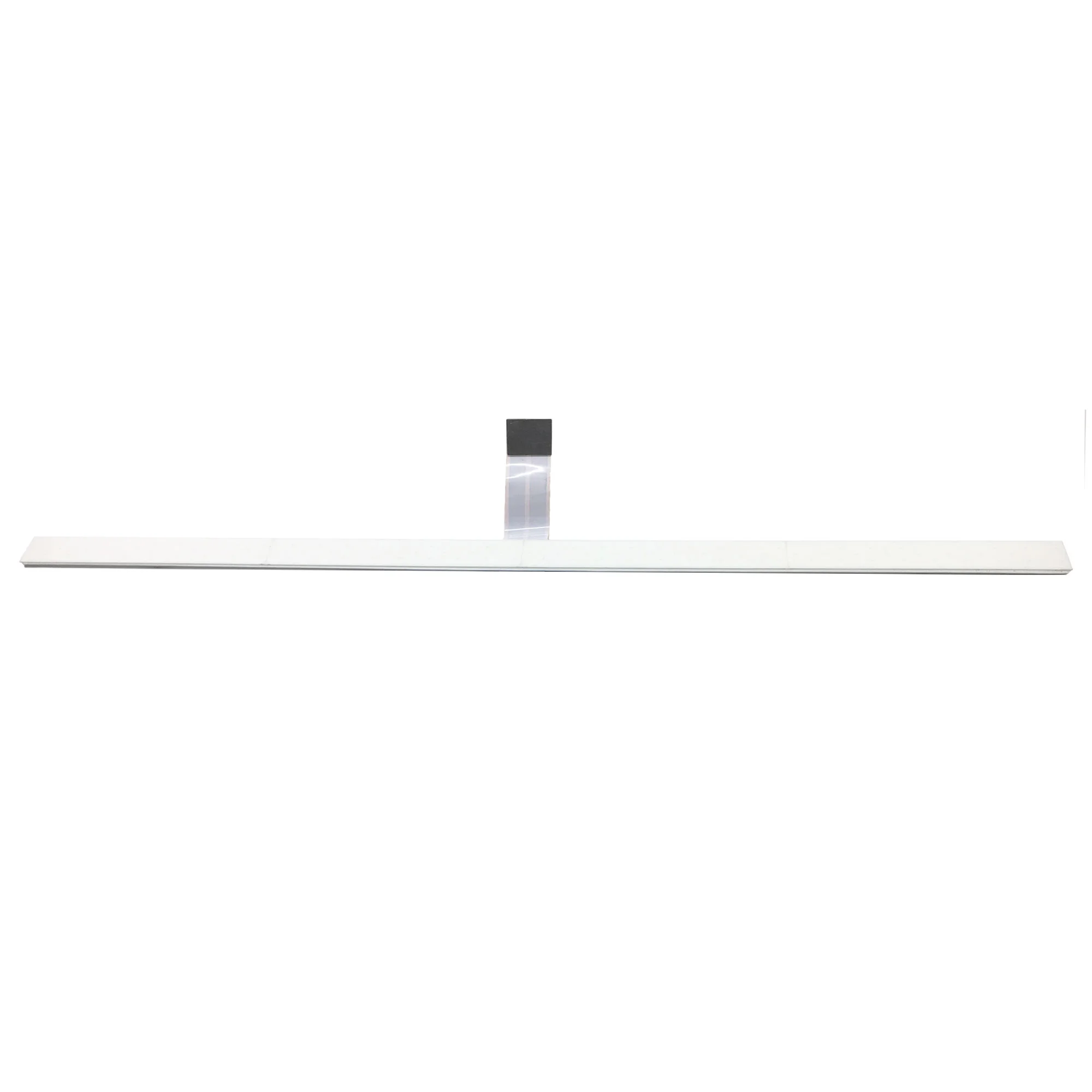

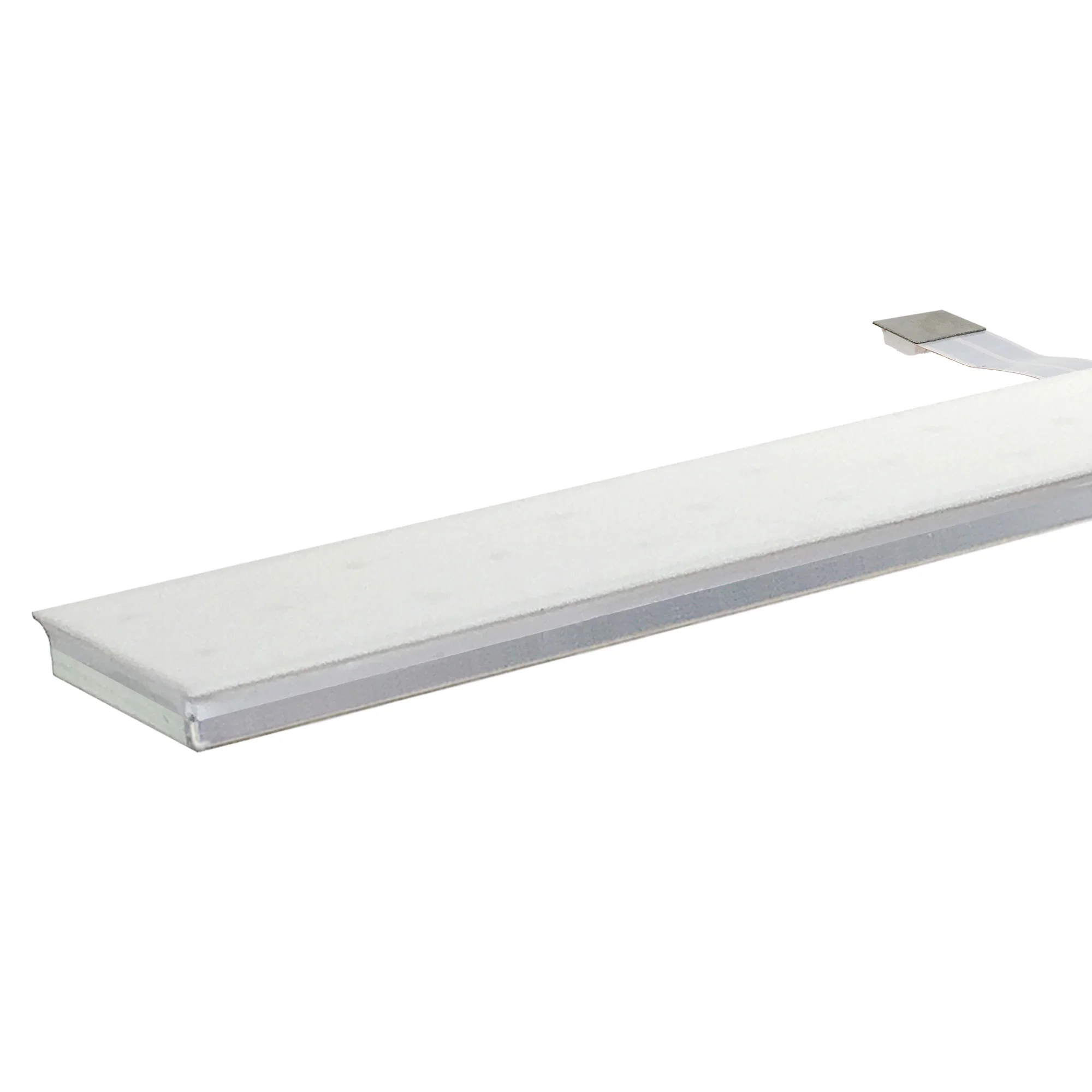

Airelight™ Linear SC 1.0

The Airelight™ Linear SC 1.0 luminaire with Suspended Ceiling Connector allows for easy integration into drop ceiling T-Bar grid applications. Utilizing its ultra slim profile and light weight, the Airelight™ Linear SC 1.0 directly attaches to the T-Bar grid with integrated magnetic connector. Capable of 770 lumens/foot (infinitely dimmable) @ 128 lumens per watt efficacy, the Airelight™ Linear SC 1.0 can be installed individually or linked continuously. A truly sustainable light source comprised of ceramic and aluminum, the Airelight™ Linear SC 1.0 uses 50x fewer raw materials than conventional light sources (measured by weight of fixtures in a typical installation).



LEED v4 Building Product Disclosure and Optimization-Material Ingredients,
Option 1 Compliant



Installation Instructions:

Suspended Ceiling T-Grid



Supplemental Video Instructions:

Direct Attachment to T-Bar (Linear SC)

Specifications:

Airelight™ Linear SC 1.0 Spec Sheet                   (15/16 T-Bar Application)


IES Files (Download):

Airelight Linear SC 1.0 (Lengths: 24")
